模具加工能力
漢鼎廠房面積1500平方米，標準化一樓廠房。設備齊全從手板模型加工車間，精加工車間，模具加工組裝車間，注塑生產車間以及無塵組裝車間規劃完整，各個車間部門通力協助保障每個客戶所需需求。
手板模型加工車間配備設備：手板CNC精雕3臺，腹膜機一臺，噴砂機一臺及配備獨立無塵噴油房，及其他輔助設備。

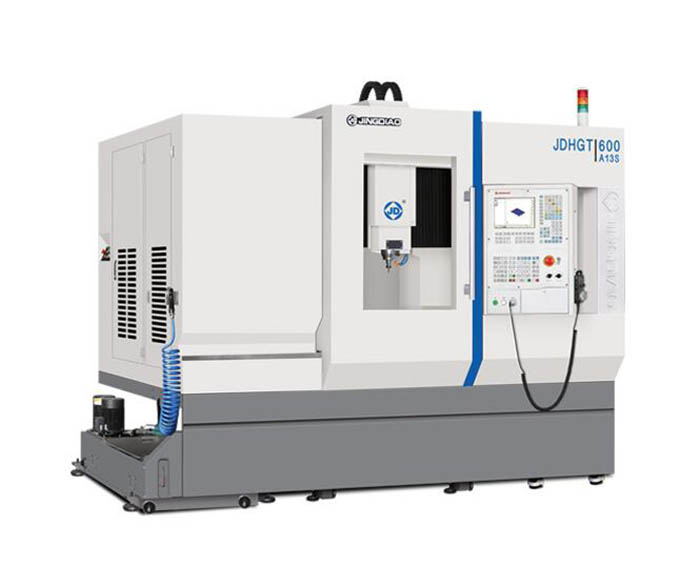

精加工車間配備設備：加工中心三臺，及其他輔助設備。
模具加工組裝車間配備設備：普通銑床3臺，深孔鉆一臺，線切割2臺，精密花火機2臺，精密磨床2臺，CNC精雕一臺，及其他輔助設備。
-

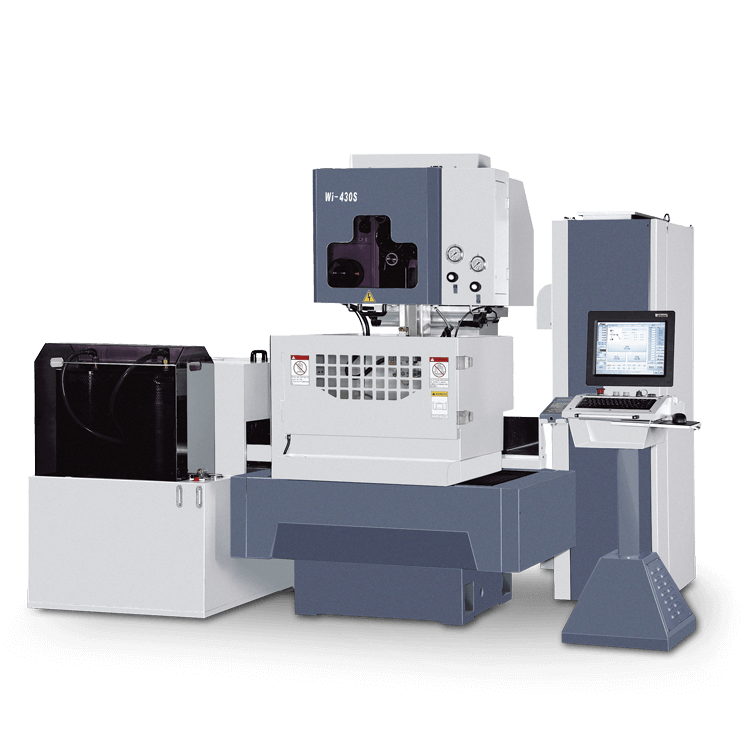

Maximum Workpiece Size (LxWxH)
870x540x295 mm
-
Wire Diameter Range
Ø 0.1~0.3 mm
-
Work Table Size
740x500 mm
-
Max. Taper Angle (°)Workpiece Thickness
±22.5 (100 mm)
-
Maximum Workpiece Weight
700 kgs
-
Maximum Axes Load
10 kgs
-
Drive & Servo
5 axes AC Servo
-
Conductivity
Automatic
-
Simulations Axis
X / Y / U / V (4 axes)
-
Water Tank Capacity
570 L
-
X/Y Axus Travel
500/ 300 mm
-
Net Weight
2450 kgs
-
Z Axis Travel
300 mm
-
Dimension (LxWxH)
3250x2200x2150
-
U/V Axis Travel
100/100 mm
-

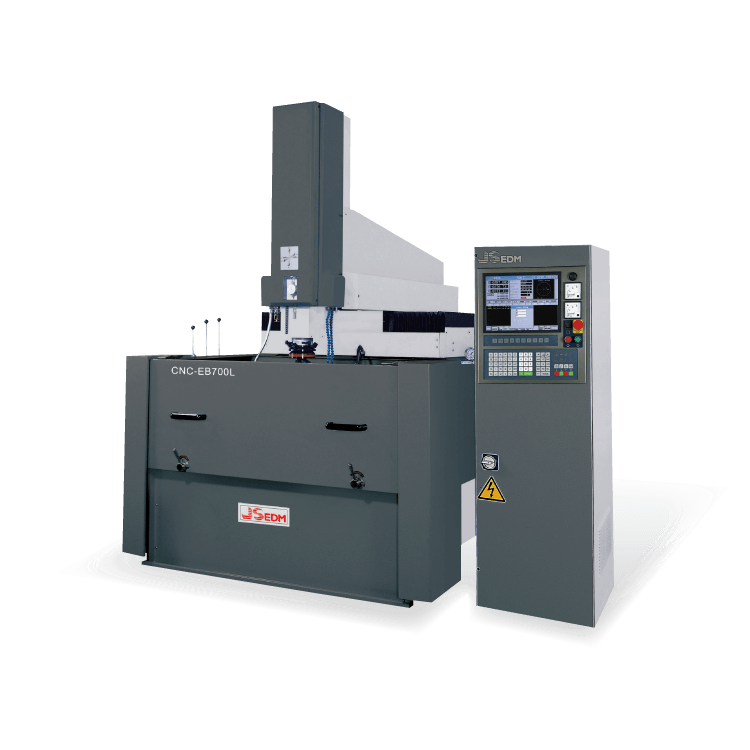

Capacity of Work Tank
1500x940x520 mm
-
Machine Outside Dimensions (WxDxH)
2850x2700x2610 mm
-
Work Table Size
1000x600 mm
-
Machine Weight
3600 kgs
-
Longitudinal Travel (X-Axis)
600 mm
-
Max. Machining Current
60 / 90 A (Optional)
-
Cross Travel (Y-Axis)
450 mm
-
Max. Power Input
7 / 10 KVA
-
Z Axis Travel (Z-Axis)
400 mm
-
Max. Machining Rate
400 / 600 mm3/min
-
Distance Between Platen to Table
350~750 mm
-
Min. Electrode Wear Ratio
0.12 %
-
Max. Electrode Weight
250 kgs
-
Best surface / Ra
Ra 0.2 μm
-
Max. Work Piece Weight
3000 kgs
-
Min. D. R. O. Resolution
0.001 mm
-
Fluid Tank Capacity
1100 L
-
Generator Weight
320 kgs
